Integrate Kameleoon with Google Universal Analytics

portrait de l'auteur Julie Trenque

Written by Julie Trenque

Updated on 22/09/2020

5 min

Intermediate

Was this content useful?

Universal Analytics is Google Analytics data collection system since 2013. One big difference with old Google Analytics is the replacement of custom variables by custom dimensions.

User benefits

  • Get started with no additional tagging plan and use Google Universal Analytics to analyze your experiments
  • See automatic segmented data by variation and compare their performance
  • Get access to the whole Google Marketing Platform suite by using Kameleoon segments

Enable Google Universal Analytics integration on Kameleoon

On the Integrations page

To use Google Universal Analytics, you must activate it on the Integrations page.

Log in to your personal space, click on “Administrate” and then “Integrations” in the sidebar.

For more information on this page, see our dedicated article.

By default, the tool is not installed. This is signaled by this icon:

With a click on “Install the tool”, you will be able to select the websites on which you want to activate it, so that information can be correctly reported to Google Universal Analytics.

Then you need to specify a tracking method.

  • UA Dimension is the recommended method. The transmission between Google Universal Analytics and Kameleoon is optimized: when needed, the custom dimension value will be sent with an event call. The Google Universal Analytics limit is 20 active custom dimensions for free accounts, 200 for Google 360 (in this case, an option must be activated by your Customer Success Manager).
  • You can select the Event method if the maximum number of active custom dimensions (UA Dimensions) has been reached, but the analysis is less straightforward with this method.

If you need to, you can also enter the UA Tracking ID you want Kameleoon to use. This option is useful in case more than one Google Universal Analytics account is configured on the same page (if not, leave the field empty).

You will find this Id in the source code of your website or in your Google Universal Analytics account (“Admin” > “Property settings” > “Tracking Id”)

Once you have configured the tool, click on “Validate” in the bottom-right corner: the configuration panel closes. You will then see a “ON” toggle on the right of the tool’s line, as well as the number of websites the tool is configured on.

Additional configuration steps are required on both tools before running an experiment on Kameleoon and retrieving the data in Google Universal Analytics.

Create a custom dimension

If you have chosen the UA Dimension transmission method, you must create this custom dimension in your Google Universal Analytics account.

Click on the “Admin” tab in the left sidebar.

Click on “Custom definitions”, then “Custom dimensions”.

Add a new custom dimension by clicking on the red button.

You have to use one custom dimension for each running experiment, otherwise your experiment names and variations will overwrite each other and your results will not be relevant.

Name your new custom dimension so you can easily identify it later. Select the “Session” scope. The custom dimension needs to be active. Click on “Create”.

You can find it in the table that lists all the custom dimensions created.

The index assigned to it by GA makes it possible to link with a Kameleoon experiment when configuring in your Kameleoon back office.

Activate Google Universal Analytics on an experiment

In the A/B graphic editor

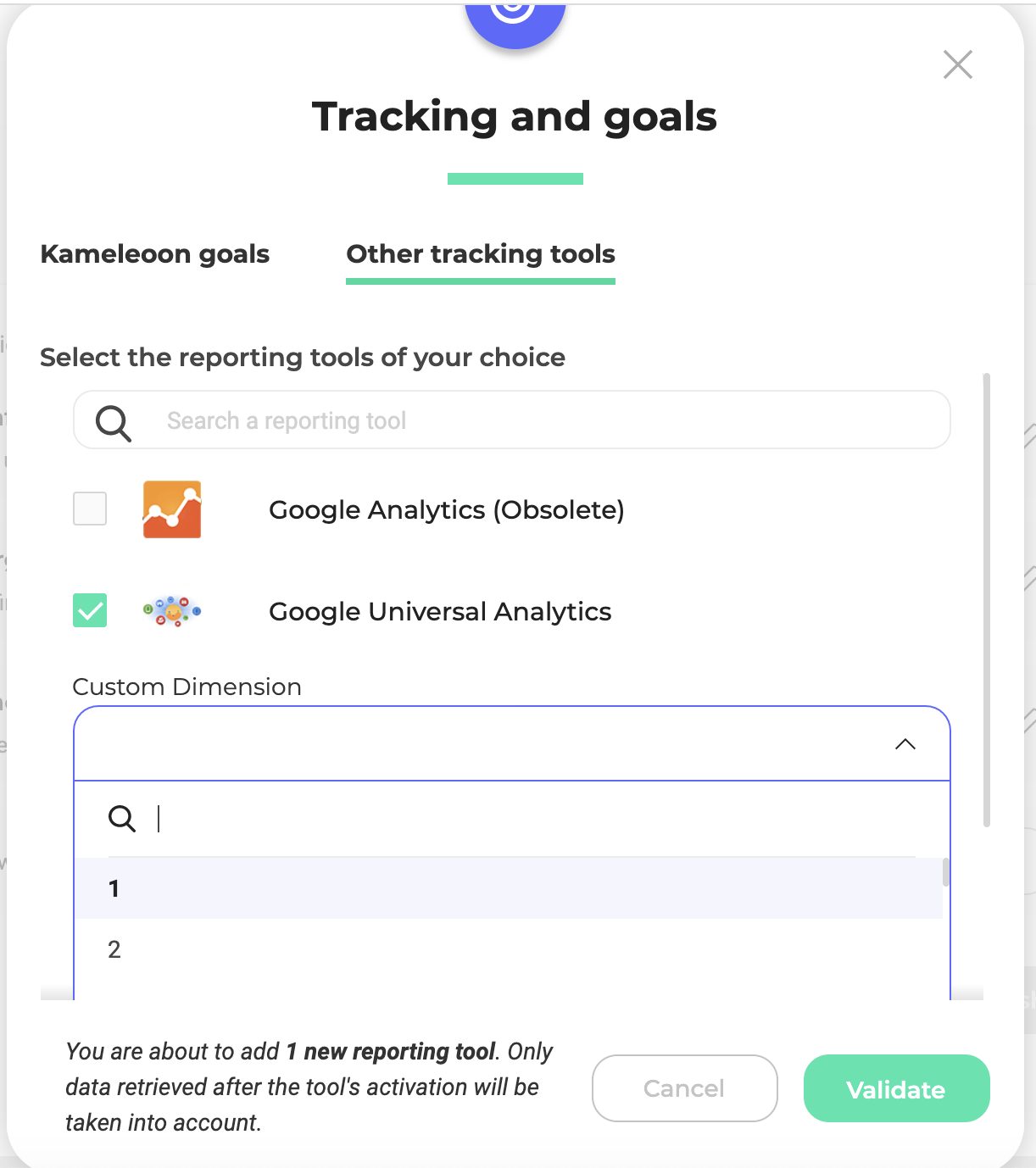

Once Google Universal Analytics is activated on the Integrations page and a custom dimension has been created, you can select it as a reporting tool at the “Tracking and goals” step of the finalization panel.

Select the index of the custom dimension you created for your test in Google Universal Analytics.

This procedure must be followed for each new test to which you want to associate Google Universal Analytics.

On the Personalization creation page

In the same way as A/B testing, you can select Google Universal Analytics among the reporting tools for a personalization.

Select the custom dimension you created for your personalization in Google Universal Analytics.

On the results page

It is also possible to select Google Universal Analytics among the reporting tools on the results page of an A/B test or a personalization.

Select the custom dimension you created for your experiment in Google Universal Analytics.

Goal definition

If you want to compare data between Kameleoon and Google Universal Analytics goals, you must ensure the configuration of the goal is the same between both platforms.

During your test, Google Universal Analytics will natively register all data about the visits on your website. It will also register all conversions done by a visitor (e-commerce transaction, clicks…)

To see which variation had the best conversion rate, you must define segments based on the variation and experiment names or create a custom report.

Create a new goal

To do this, log in to your Google Universal Analytics account and select the “Admin” tab on left sidebar.

Once you have selected the property and the view, click on the “Goals” button.

Click on the “New goal” button to create a new goal for your A/B test.

Goal setup

You need to create a custom goal.

Click “Continue”.

Goal description

Then, define the type of goal. Several choices are available:

  • Destination: the display of pages or screens will be considered a conversion. Indicate the screen or the URL in the “Destination” field. It can be “equal to…”, “Begins with…” or a regular expression.
  • Duration: time spent on the page will be considered a conversion. The fields hours, minutes and seconds indicate the minimum duration for the time spent on the page to be a conversion. When a visitor exceed this duration, a conversion is generated.
  • Pages/Screen per session: the user’s interactions will be considered a conversion. To use this type of goal, you must configure at least one event.
  • Event: the number of pages or screens per session will be considered a conversion. When a user exceed the number you defined, a conversion is generated.

Click on “Continue” to define your goal details.

Goal details

Fill in the fields according to the chosen type of goal.

Click on “Save” to add your goal.

The goal is then added to the list and you can edit it or stop it from recording data.

You can create up to 20 goals per view.

Retrieve in Google Universal Analytics click tracking goals created in Kameleoon

Click tracking goals created in Kameleoon can be sent to external tracking tools, including Google Universal Analytics.

Go in the advanced settings of your click tracking goal and activate the option.

Define segments

A segment is a subset of your Google Analytics data.

Creating segments is the best way to analyze the results of your Kameleoon experiments in GA.

It is preferable to create segments rather than custom reports.

It is necessary to create a segment for each variation of your test, including the reference.

To set up a new segment, go to the “Admin” menu, click on “Segments” in the third column and then on the “New segment” red button.

Depending on the option chosen when integrating GA into Kameleoon, you can create a GA segment:

  • based on a custom dimension (UA Dimension);
  • or based on an event.

Name your segment. Include the word “Kameleoon” to make it easier to find it later, as well as the test name – variation name.

In the left sidebar, click on “Conditions”.

If you have chosen the “UA Dimension” option

In the first dropdown, unroll the “Custom Dimensions” tab and select the previously created custom dimension you want to link your segment to.

Leave “contains” in the second dropdown.

In the right field, the autocompletion allows you to find the custom dimension created and which contains the word “reference” or “variation x”.

Then click on “Save” to validate the creation of the segment.

If you have chosen the “Event” option

In the first dropdown, unroll the “Event” tab and select the event you want to link your segment to.

Leave “contains” in the second dropdown.

In the right field, the autocompletion allows you to find the event.

Then click on “Save” to validate the creation of the segment.

How to use a segment

You will then find it in the list of your segments and you can use it to filter data in GA visualization tools.

Once a segment is selected, it is used in all dataviz tools.

Add one by one the segments created from the variations of an experiment and compare the data collected.
