Google Analytics 4 Audiences

This article outlines how to create a bridge between Kameleoon and Google Analytics 4 (GA4) to identify visitors within GA4 audiences and target them accordingly.

Prerequisites​

To make this integration work, you must send the following information to your Customer Success Manager, as it is required to set up the bridge in your Kameleoon account:

  • The credentials of a service account in a JSON format. Please use a compression tool to secure this file with a password then send the package separately from its password.
  • Your project's property ID.
  • You Kameleoon project's sitecode.

Step 1: Set up the authentication through a service level account​

To grant a technical user account access to a Google Analytics account and privileges to retrieve data through the different available APIs, the basic requirements are the following:

  • An email account with admin access to Google Analytics that will be used to generate a project and service account.
  • Access to all required Audiences (in GA4) for this account.

Create a project in google Cloud Console​

You must create a new project in Google Cloud console to activate APIs and create tokens.

Got to this URL. Log in with the email account that has admin access and create a new project.

Name the project and choose the organization and location you have access to.

Activate appropriate APIs​

To use any API with a particular email address, it must be activated in Google Cloud Console, which is done by clicking Library.

Search for these three APIs in the search bar and activate them:

  • Google Analytics Reporting API
  • Google Analytics Data API
  • Google Analytics API

Create service level account​

To fully automate GA4 reporting API requests, we must create a service level account that will bypass the need for an authentication callback.

To create this account, click IAM & Admin > Service accounts.

Then, click Create service account.

Next, enter a name for the account. The service email will be generated automatically. We recommend adding a description, so the purpose of the account is clear to.

Then, choose the role for the service account. We recommend choosing viewer, as our bridge only requires the use of Google APIs and not the project resources directly.

Once the account is created, click Keys.

Then, click Add key > Create a new key to generate a downloadable key.

Choose the JSON format and click Create to generate the key.

The key downloads on your machine.

Then, send these credentials in a JSON format to your Kameleoon Customer Success Manager. Please use a compression tool to secure this file with a password then send the password separately from its password.

Grant Service Account Viewer permissions for your Property​

To access the Property Access Management page in Google Analytics 4:

  1. Sign in to your GA4 account.
  2. Select the specific GA4 property you want to manage.
  3. Access the Admin settings.
  4. Look for the Property User Management or Property Access Management option.
  5. Click + > Add user.

  1. In the Email addresses field, enter the email address associated with the Service Account that requires access.
  2. In the Standard roles section, select Viewer.
  3. Click Add.

Step 2: Push Kameleoon visitorcodes in a GA4 custom dimension​

Next, you must configure the bridge to send each visitor's Kameleoon visitorCode to GA4 via a custom dimension.

Using gtag.js​

1. Push the visitorCode to GA4​

The following code should be added in the Kameleoon global custom script section:

      if (Kameleoon.API.CurrentVisit.pageViews === 1) {
    Kameleoon.API.Core.runWhenConditionTrue(
      function () {
        return typeof window.google_tag_data !== "undefined";
      },
      function () {
        gtag.push({ 'event': 'Kameleoon Visitor Code', 'kameleoon_visitor_code': Kameleoon.API.Visitor.code });
      },
      500
    );
  }

2. Create the custom dimension in GA4​

You must create a custom dimension that will be used to receive the Kameleoon visitorCode for each visitor. Set the dimension scope to User, name it Kameleoon Visitor Code and enter kameleoon_visitor_code as the User property.

Using Google Tag Manager​

1. Push the visitorCode in the dataLayer​

The following code must be added in the Kameleoon global custom script section.

 if (Kameleoon.API.CurrentVisit.pageViews === 1) {
   Kameleoon.API.Core.runWhenConditionTrue(
     function () {
       return typeof window.google_tag_manager !== "undefined";
     },
     function () {
       dataLayer.push({ 'event': 'Kameleoon Visitor Code', 'kameleoon_visitor_code': Kameleoon.API.Visitor.code });
     },
     500
   );
 }

2. Add the GTM variable​

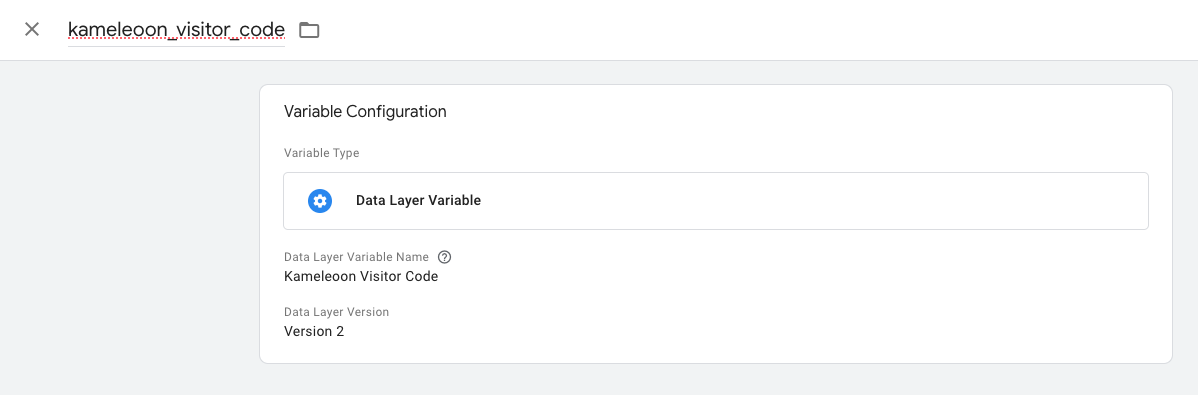

First, you must create a variable in GTM for the Kameleoon visitorCode. Go to Variables and create a new Data Layer Variable.

  • Name: kameleoon_visitor_code
  • Variable configuration:
    • Type: Data Layer Variable
    • Data Layer Variable Name: Kameleoon Visitor Code

The variable should be set to retrieve the value from the Data Layer.

3. Create a tag in GTM​

Next, you must create a tag and push this data into GA4.

1. Create a variable​
  1. Go to GTM: Open Google Tag Manager and navigate to your container.
  2. Navigate to Variables: In the left-hand menu, click Variables.
  3. Create a new variable: Under User-Defined Variables, click New.
  4. Select variable type: Click Variable Configuration and choose Data Layer Variable.
  5. Configure the variable:
    • Name: kameleoon_visitor_code
    • Variable type: Data Layer Variable
    • Data Layer Variable Name: Kameleoon Visitor Code
  6. Save the variable.
2. Create a trigger​
  1. Navigate to Triggers: In the left-hand menu, click Triggers.
  2. Create a new trigger: Click New.
  3. Select trigger type: Click Trigger Configuration and choose Custom Event.
  4. Configure the trigger:
    • Trigger name: Give your trigger a descriptive name (for example, "Page Type is Product").
    • Event name: Enter the event's name you want to base the trigger on, or leave it empty if you want the trigger to activate on any event.
    • This trigger fires on: Choose Some Custom Events.
    • Conditions: Set the condition for your dataLayer variable.

The regex corresponds to your visitor code: /^[a-z0-9]{16}$/

  1. Save the trigger: Click Save.
3. Attach the trigger to a tag​

  1. Navigate to Tags: In the left-hand menu, click Tags.
  2. Create or edit a tag: Either create a tag or edit an existing one.
  3. Attach the trigger:
    • In the tag configuration, scroll to the Triggering section.
    • Click Triggering and select the trigger you created.
  4. Save the tag: Click Save.

Step 3: Create a Custom data to use your GA4 audiences in Kameleoon​

To use your GA4 audiences in Kameleoon, you must set up custom data in Kameleoon.

Name your custom data GA4 Audiences and choose the Custom JavaScript code acquisition method.

The custom data should be set to the list of and strings types, the scope can be set to visit or page (when set to page, it is re-evaluated on every page load).

Use the code below in the custom data acquisition method:

 Kameleoon.API.Data.retrieveDataFromRemoteSource(Kameleoon.API.Visitor.code, function(data) {
     for (const [key, value] of Object.entries(data)) {
         Kameleoon.API.Data.setCustomData('GA4 Audiences',key)
     }
 });
 return { "value": null}

Click Next and activate the Save the values for the targeting condition associated with the custom data point option. Add the JavaScript code below and replace [SITECODE] with the Kameleoon sitecode. To find your sitecode, refer to this article.

Also, ensure you replace [WEB_PROPERTY] with the right GA4 property ID.

var xhr = new XMLHttpRequest();

xhr.open(
  "GET",
    "https://integrations.kameleoon.com/ga4-audience?sitecode=[SITECODE]&web_property=[WEB_PROPERTY]",
  false
);

var GA4Audiences = [];

xhr.onreadystatechange = function () {
  if (this.readyState === XMLHttpRequest.DONE && this.status === 200) {
    var audiences = JSON.parse(xhr.response);

    audiences.map(function (audience) {
      if (audience) {
        GA4Audiences.push({ value: audience, label: audience });
      }
    });
  }
};

xhr.send();

return GA4Audiences;

Click Save to create the custom data.

You can now use your GA4 audiences in our Segment builder to target visitors in Kameleoon campaigns by choosing the custom data in our Segment builder and selecting is among the values, which will then show a list of every audience name from GA4.

External segment sync for server-side​

If you would like to use GA4 audiences with one of our SDKs, you must follow the guidelines in each SDK documentation and use the getRemoteData() method.
